Zero Cost Deep-Learning for Microscopy

Volker Bäcker

Montpellier Ressources Imagerie

29/04/2020

Content

  1. What is ZeroCostDL4Mic?
  2. Experience Report Noise2Void
  3. Conclusions

1.1 Spoiler

  • Is it really for free?
    • yes
    • some restrictions, but usable

1.2 What problem does it solve?

  • We’ve seen a lot of publications applying deep-learning for microscopy
  • But difficult to use for most, because they need to be trained on our data
    • need cloud/GPU/cluster access
    • need to get the images to the cloud/GPU/cluster
    • need programming skills
    • need DL basics to select the training parameters

1.3 How does it help?

  • prepared jupyter notebooks
  • start them on google colab by clicking on a button
  • the text walks you through the process step by step
  • you don’t have to touch any code
    • everything is done via a graphical user interface in the notebook
  • access to your data via your google-drive

1.4 What can I do with it?

  • There are currently 5 models:

model application
UNet segmentation, EM, brightfield images
Stardist (2D/3D) nuclei segmentation, DAPI, Hoechst
Noise2Void (2D/3D) denoising, unsupervised - no ground truth images needed
CARE (2D/3D) image restoration, low SNR to high SNR
fnet create fluorescent image from brightfield image

1.5 How to get started?

  • Start at the project’s wiki
  • You need
    • a google account
    • enough free space in your google-drive
  • Click on the “Open in colab”-button to start a notebook in colab
  • Follow the instructions in the notebook

1.6 What are the restrictions?

  • One training/prediction unit can max. take 12h
    • colab disconnects every 12 hours
      • to make crypto-currency mining impossible
  • free google-drive provides 15GB of disk-space
  • colab distributes GPUs/TPUs according to availability
    • you get access to GPUs/TPUs according to
      • availability
      • your previous usage

2.1 Noise2Void Experience

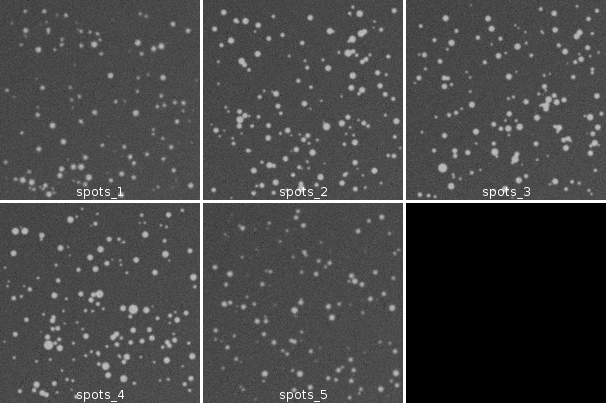

  • the images (800x800 8-bit)

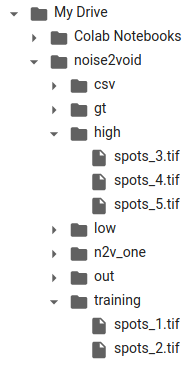

2.2 Image Upload

  • upload to google-drive
    • 2 images for training, 3 images for predictions

2.3 Running the noise2void

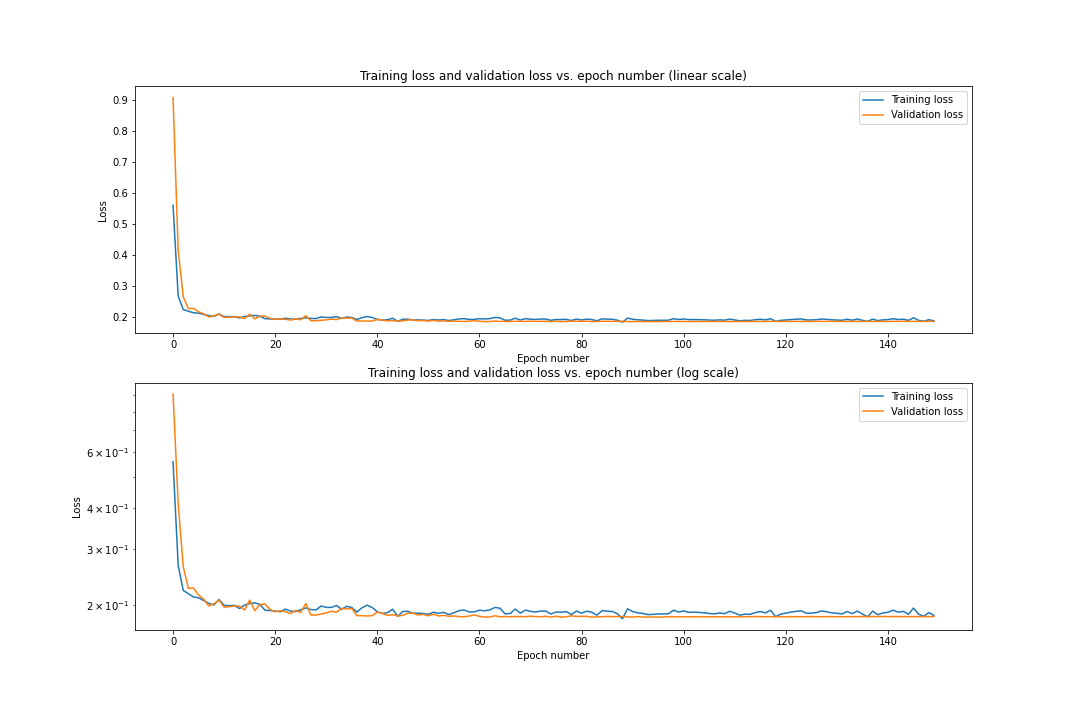

2.4 Training Loss

2.5 Quality control

  • You need ground-truth images to do the quality estimation
  • In this case the images are synthetic
  • low noise images created with MRI_Create_Synthetic_Spots_Tool
  • noise added separately for foreground and background with ImageJ

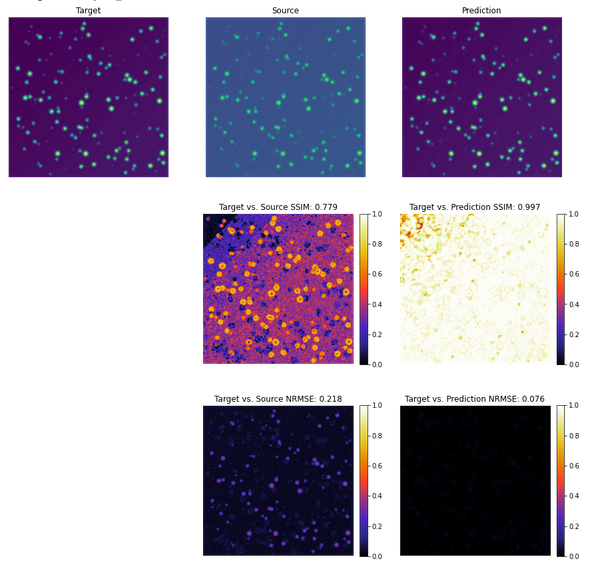

2.6 Quality control results

  • SSIM: structural similarity in [0,1], the closer to one the better
  • NRMSE: normalized root mean square error, the closer to 0 the better

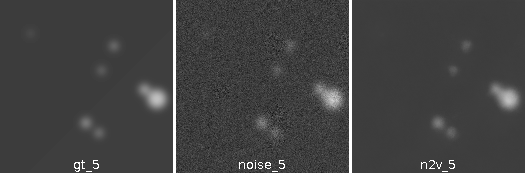

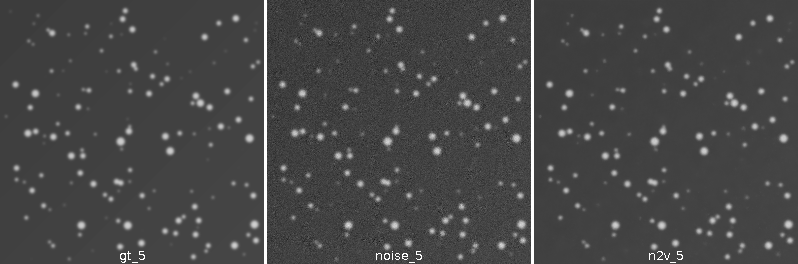

2.7 Results - Images

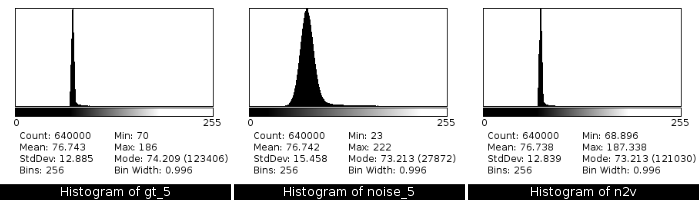

2.8 Results - Histograms

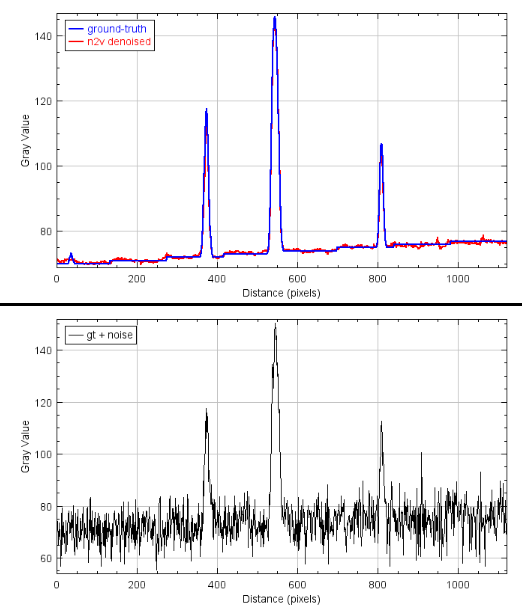

2.9 Results - Plots

2.10 Results - Metrics

Calculated with the SNR-Plugin [1]

metric long name
SNR Signal to Noise Ratio
PSNR Peak Signal to Noise Ratio
RMSE Root Mean Square Error
MAE Mean Absolute Error

[1] D. Sage, M. Unser, Teaching Image-Processing Programming in Java, IEEE Signal Processing Magazine, vol. 20, no. 6, pp. 43-52, November 2003.

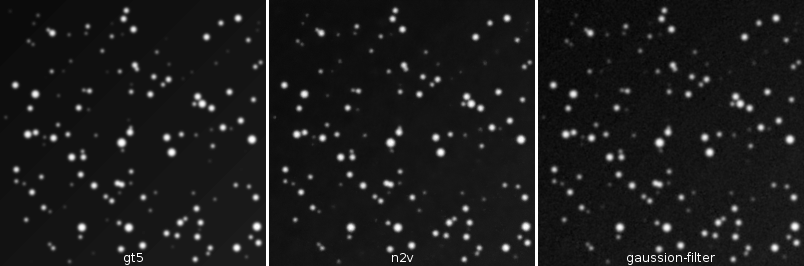

2.11 Comparison with Gaussian-Filter

  • Is the n2v denoising better than a simple solution?

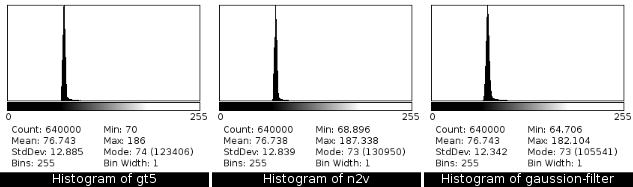

2.12 Comparison - Histograms

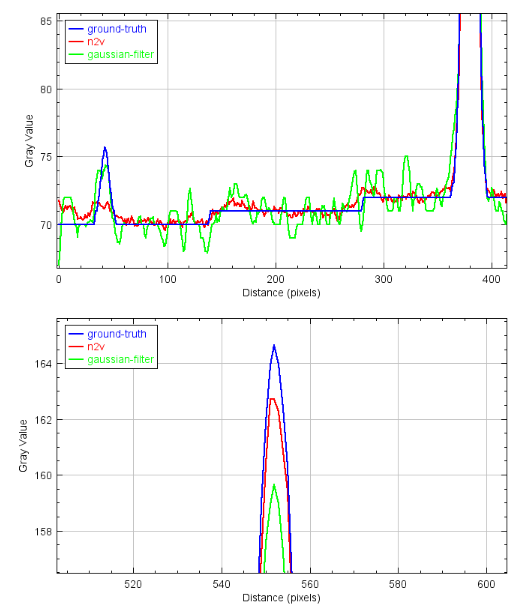

2.13 Comparison - Plots

2.14 Comparison - Metrics

Calculated with the SNR-Plugin [1]

metric long name
SNR Signal to Noise Ratio
PSNR Peak Signal to Noise Ratio
RMSE Root Mean Square Error
MAE Mean Absolute Error

[1] D. Sage, M. Unser, Teaching Image-Processing Programming in Java, IEEE Signal Processing Magazine, vol. 20, no. 6, pp. 43-52, November 2003.

3.1 Conclusions noise2void experiment

  • Training was fast
  • The result “looks” very good
  • Higher SNR than the Gaussian-blur filter
  • Low intensity spots are lost with n2v
    • For segmentation Gaussian-blur filter might be better (in this case)

3.2 Conclusions

  • We can use Zero Cost Deep-Learning for Microscopy (all)
  • We can setup other DeepLearning-models in the same way (the ML-team)
  • We can train and apply the model
    • on colab
    • on analysis pcs (with or without gpus, depending on the model)
    • on our own server (we do not have it yet)
    • possibly on the meso@lr cluster (not setup yet)
  • We can apply the trained models from ImageJ

=> Try it on colab to get started

3.3 An alternative

  • ImJoy [1]
    • nice environment for deploying DL-models
    • also a number of DL-models for microscopy already available
    • for cloud computing it uses mybinder (only demo)
      • but could user other services
    • more complex for setup and data-access
    • user friendly gui for training and predictions

[1] Ouyang, W., Mueller, F., Hjelmare, M. et al. ImJoy: an open-source computational platform for the deep learning era. Nat Methods 16, 1199–1200 (2019)
