Cellpose

Volker Bäcker Montpellier Ressources Imagerie 05.02.2020

Content

  • What is cellpose?
  • How does it work?
  • Online test
  • Installation
  • Usage
  • Batch processing

What is cellpose?

cellpose_cells

What is cellpose?

  • segment cells of different types from different imaging modalities
    • given an image of the cells
    • optionally an image of stained nuclei
  • DL network trained with images of 70000 cells
  • a new model to represent cells

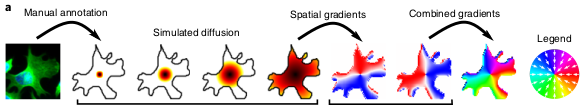

How does it work?

  • from ground truth mask
    • create gradient vector field
    • by using simulated diffusion
  • train modified UNet to predict gradient vector fields
  • applying the model:
    • predict gradient vector fields
    • track each pixel to its attractor
    • all pixels tracked to the same attractor belong to the same cell

The images

The images

  • nd (tif) files

  • 2 channels

  • 2304x1944 16-bit convert to 8-bit png (or RGB-png) for upload

  • => First upload trial failed because:

    • conversion of tiff to png resulted in 16-bit png files

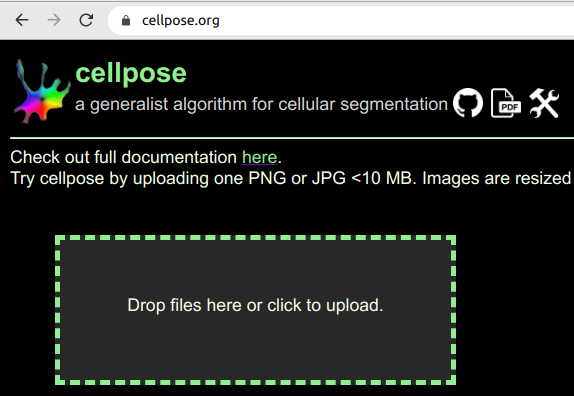

Test online

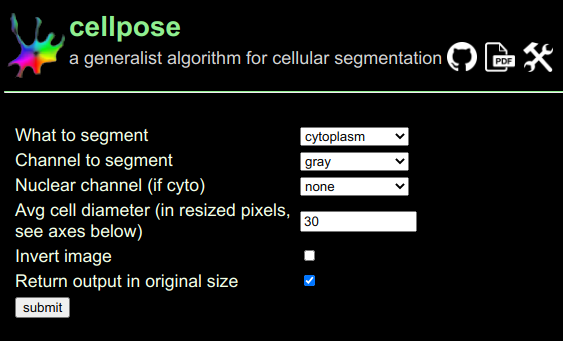

Test online - parameter

  • When repeating locally results with same diameter different
    • Is auto-diameter used ???

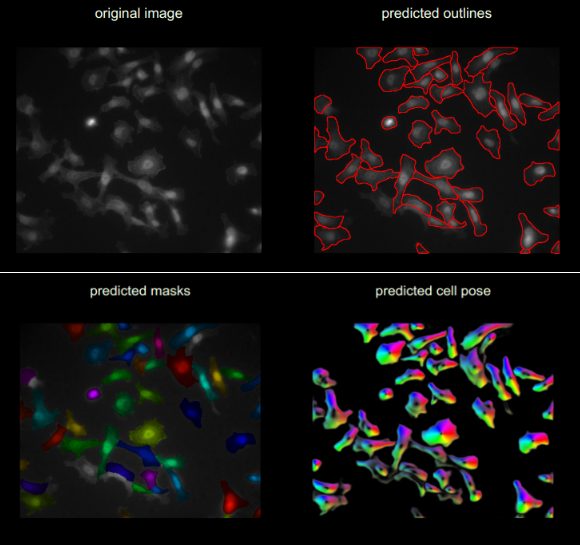

Test online - result

Installation

  • git clone https://github.com/MouseLand/cellpose.git (or download the zip)
  • on windows install Anaconda
  • conda env create -f environment.yml
  • conda activate cellpose
  • pip install cellpose –upgrade
  • pip install cellpose[gui]
  • python -m cellpose

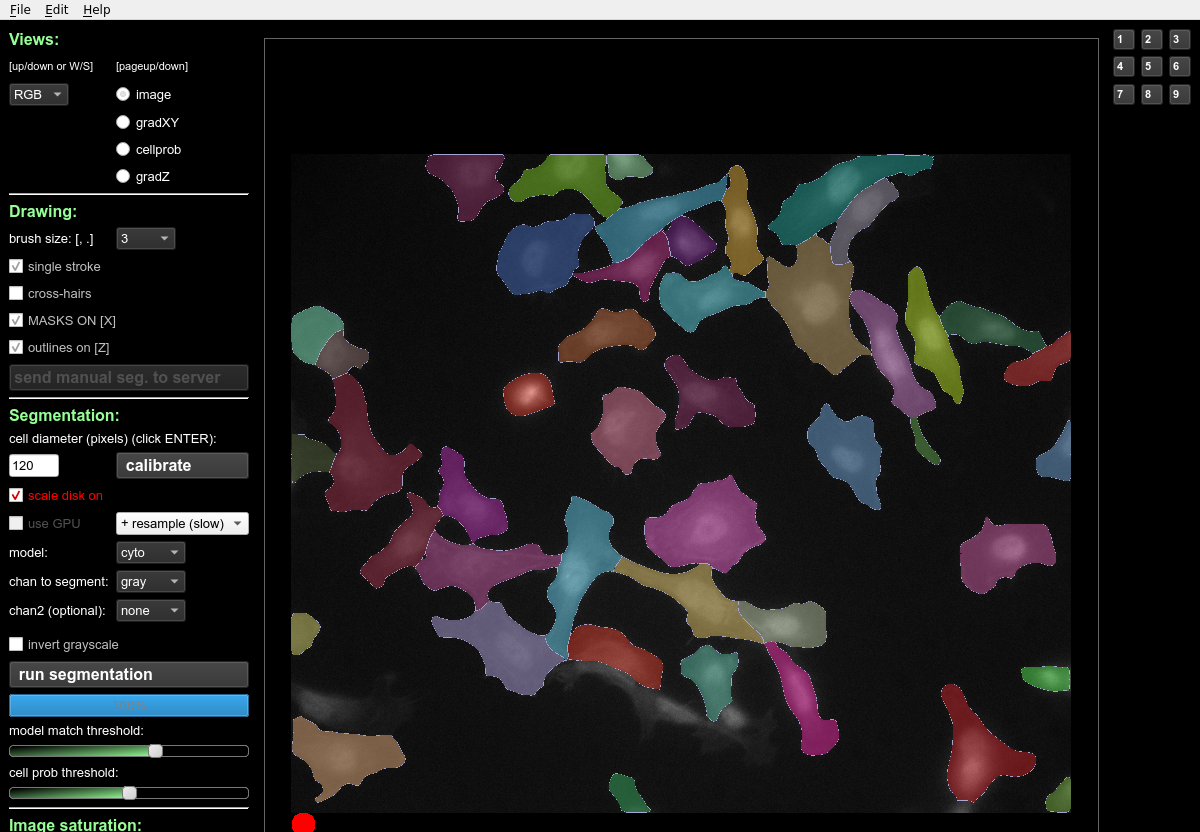

Cellpose application

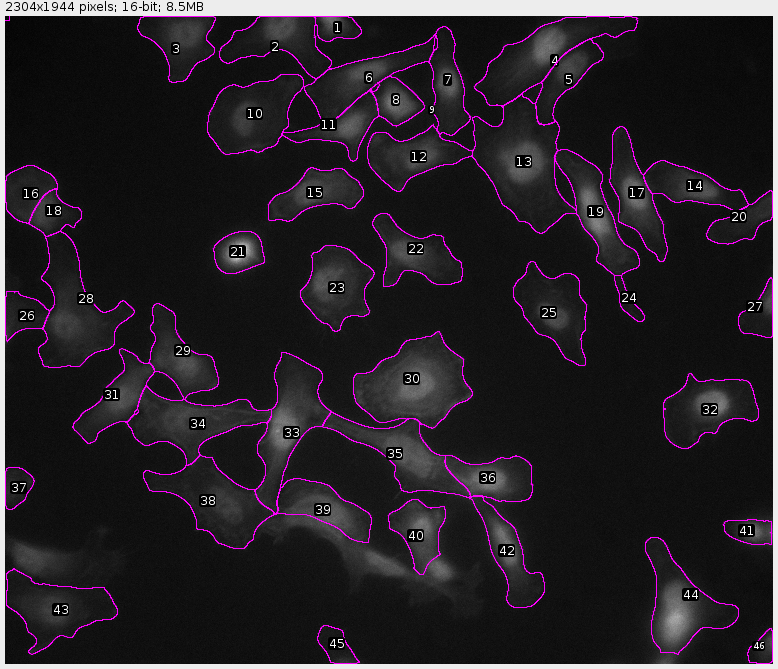

Convert to IJ roi

  • File>save outline as text for imagej
  • run imagej_roi_converter.py from FIJI

Batch Processing

  • pip install natsort
  • pip install torch==1.7.1+cpu torchvision==0.8.2+cpu torchaudio==0.7.2 -f https://download.pytorch.org/whl/torch_stable.html

Literature

[1] Stringer, C., Wang, T., Michaelos, M._et al._Cellpose: a generalist algorithm for cellular segmentation._Nat Methods_(2020). https://doi.org/10.1038/s41592-020-01018-x
